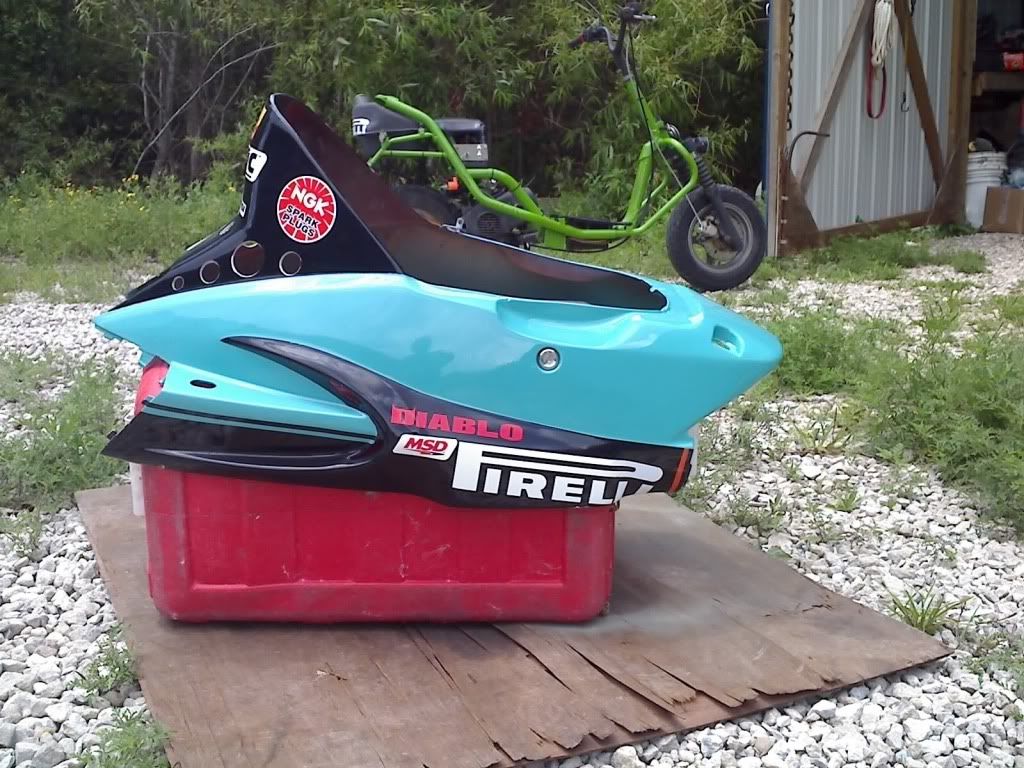

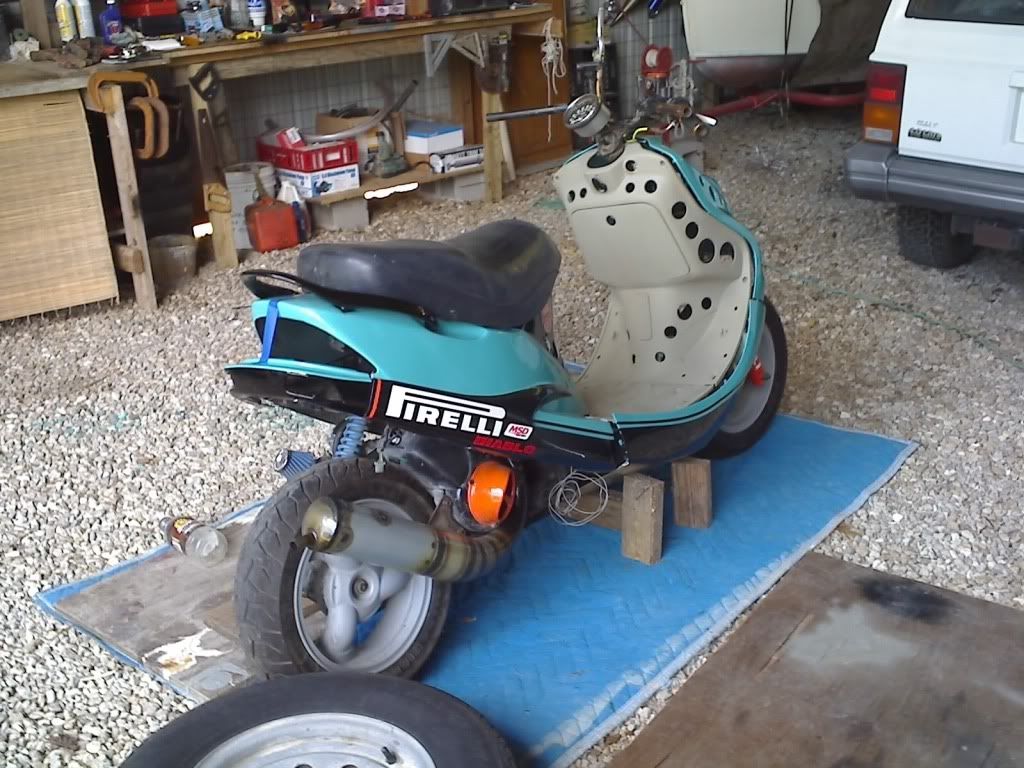

A little updating on the ZX parts... I finished the paint on the body,
Here's one for Josh...

The next step was fabing a console or dash for my gauges. This was done in a cured sheet method. Using a pane of window glass I set a panel, and peeled it to have some material to work from...
Here's the raw lay up...
This is a mock up for final fitting, and yes, that is a 90MPH speedo.

Where's Waldo?

The rest of the mounting is done with rubber mounts, and it is in the first stages of paint. I have only base coats on it so far but it will be finished in the two tone set of the bike. These are just some mock ups of the speedo, and a few of the body...


On a side note... I got the HPI Ign. in the other day.
I have an issue that HPI is pretty slow in sorting out... The problem is the software will not save any projects either to the computer or to the cdi. I have the "com ports" sorted right. Anyone have any ideas?

Thanks for looking, and all the help in getting this far. This bike is going to be an animal.
Addicted to 2 stroke 50cc:

I don't use the choke. I warm my fuel in a spoon, and inject it into the vacuum line.

User avatar
Big B NRG
Posts: 1661
Joined: Fri Sep 21, 2007 2:25 pm
Location: The Netherlands
Contact:

Postby Big B NRG » Wed Jul 25, 2012 3:17 pm

Great work on the plastics. Takes real skill to make such!!

Is the program giving any errors when you try to save?
Maybe you need to delete the existing curve first before you can load a new one?
Will build someday again!

zombie
Posts: 1303
Joined: Thu Oct 08, 2009 11:30 pm
Location: N.W. Florida

Postby zombie » Fri Aug 03, 2012 7:45 pm

Thank you J. for moving the thread. I am a high maintenance kinda guy... What with rotting flesh, and a craving for brain fodder...

The CDI I have has no existing curve. It is the un programmed version. There is alot of info on the current situation that I will post up but 6 beers, and a waiting desert are preventing me from getting techy...
I just wanted to thank J. for separating the two threads I messed up, and to let you all know there has been some progress on the build. I have the engine assembled, and have pulled a few rabbits out of my hat in doing so. The only OEM parts on this scoot are countable on your hands. No joke. I have finally found the corrcet time to call HPI, and have been given the royal treatment. I also found out (maybe) why Waxheads customers had a hard time with programs not holding in the HPI cdi. This hurt my soul... You CANNOT run a Non resistor cap or plug with the cdi's they build. It MUST have a 5k cap, and a resistor plug. They WILL run on non resistor but will lose their program when run on straight thru set ups.
MAYBE I can get a resistor version of a 12 heat range gap less plug from NGK. If not I will make one.
Anyway I will update both threads with facts once I return to earth.
Just so you feel my pain... This is what my brain does... http://www.youtube.com/watch?v=mdwZV4Y9 ... re=related
Addicted to 2 stroke 50cc:

I don't use the choke. I warm my fuel in a spoon, and inject it into the vacuum line.

zombie
Posts: 1303
Joined: Thu Oct 08, 2009 11:30 pm
Location: N.W. Florida

Postby zombie » Sun Aug 05, 2012 8:31 pm

Whew!!!
Guess I'll start w/ the frame. I was going to have it sandblasted but it was really just dirty. No rust, or flaking paint so I just sealed it, and shot it w/ the same Imron as the plastics. It's just darkened up some w/ blue/black.

Paint is done. Just a bit on the dash piece..

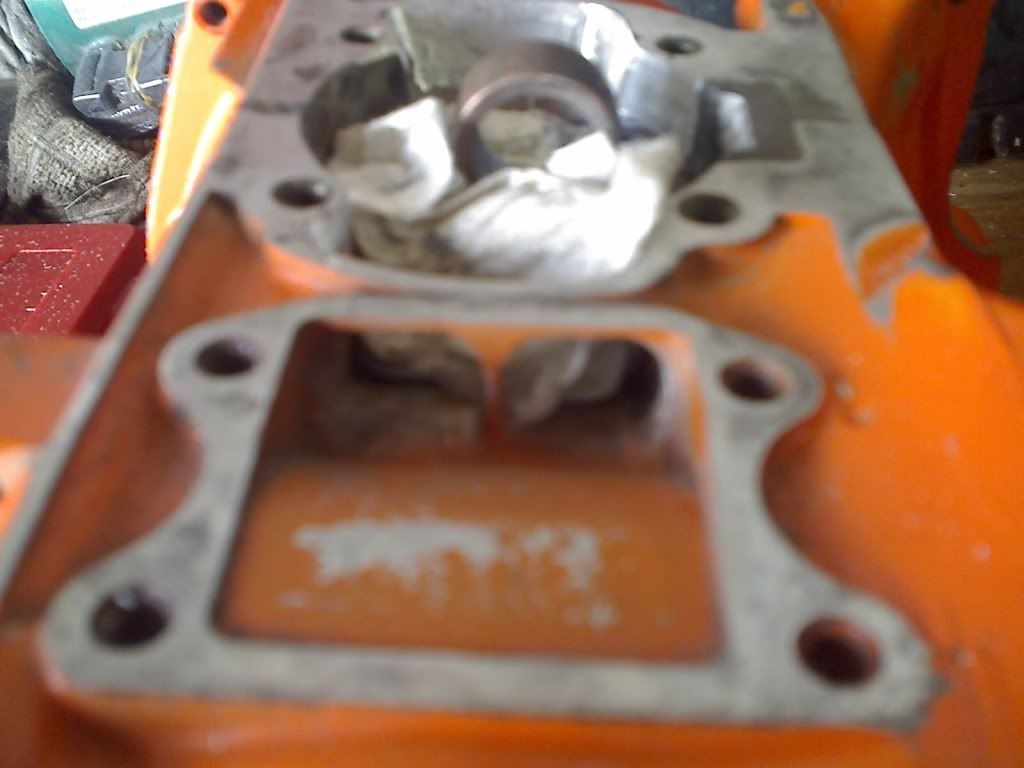

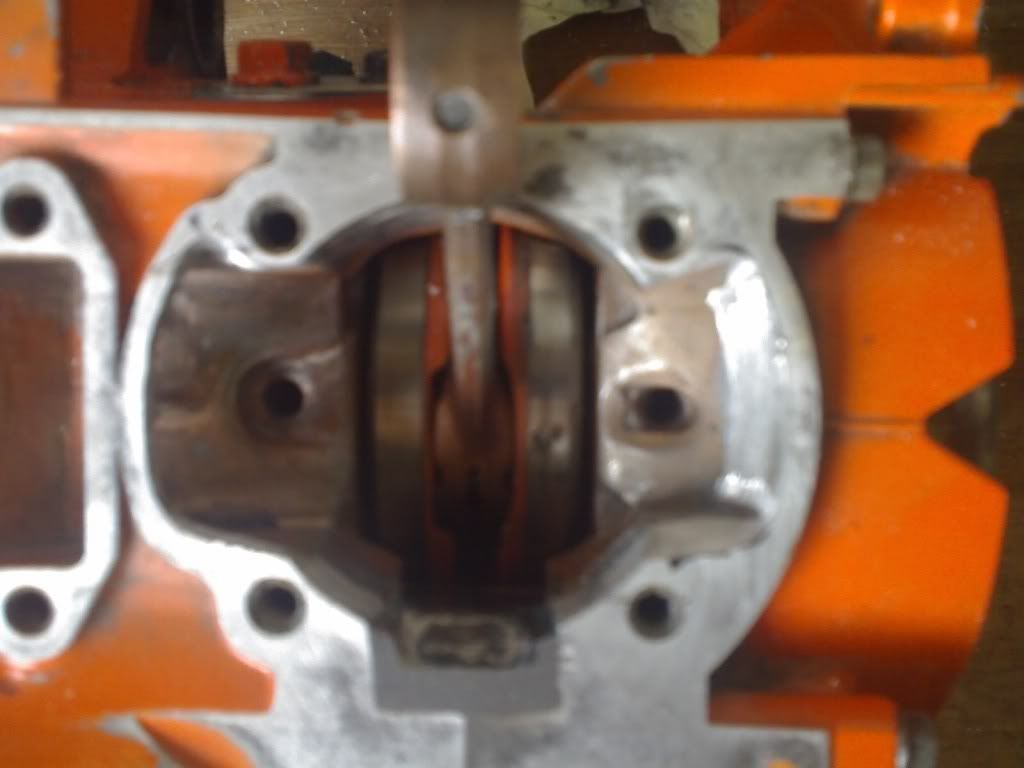

Next was the engine case. I still had some meat to remove as well as filling the old boost port from the 50mm jug taht was on it before. I have two cases so I can side by side them. The picts blow but you'll get the idea.
Thats a fiberglass block to hold the epoxy till it cured. I did all the work with the cases assembled so I used paper towels, and grease to block the crank. I know its cheesy. It works for me. The rest are intake/case mods... The oilers were drilled out, the chanell for the boost ends right under BTC on the crank. The idea is to force feed the boost. It worked great on the 50mm, and works even better on this jug. I had the top 1/2 of the transfers in the case polished but got lazy this go round.

Next was a spacer for the base. I was about 1.5mm above the deck, ans my top inng was about 1.5mm into the boost port w/ a OEM paper gasket. I got a 6pack of assorted thicknesses 4x4" aluminum http://www.onlinemetals.com/aluminumguide.cfm I wound up using a combo of OEM paper gasket on the base w/ a forgotten spacer thickness next, followed by the OEM aluminum gasket supplied by Polini. Using Perfect seal on the paper, and Flange sealer on the aluminum I have a finished height of 1.8mm that gives me a .5mm squish on the furthaes outside egge of the piston. The inner most of the squish band is .7mm. It is a mere 4-5mm wide band in the head. Here's the raw metal/spacer/gaskets used.

I did not take picts of the jug because the phone died but it is Matched to the cases. The Exh is 1.5mm higher to bring up the oEM power band to match the pipes 11-25k. Oem Polini is 8.5-9.5. Also widened the Exh by 4mm, and raised the forward transfers 1mm to try to avoid being overly peaky. The boost, and rear transfers are OEM.
I had one strange issue... The right side transfers were showing a perfect cool wash where the cooler mix enters. The Intake side showed no wash... I also found a pencil lead thin stripe of carbon on the intake side of the exh. port. I can only assume it was rich jetting as it was never really dialed in. It was BROKEN in but not tuned.

Next was the cvt cover, and ctv itself... I drilled out a sh*t load of air holes. My componants were getting blued from heat so this may do it.
Stage 6 MKII w/ Malossi red, and torsion controller. Also using S6 orange fly springs. One step down from S6 race. The Var is a Jasil, and the bely Malossi. Trying 7.5 rollers to start.

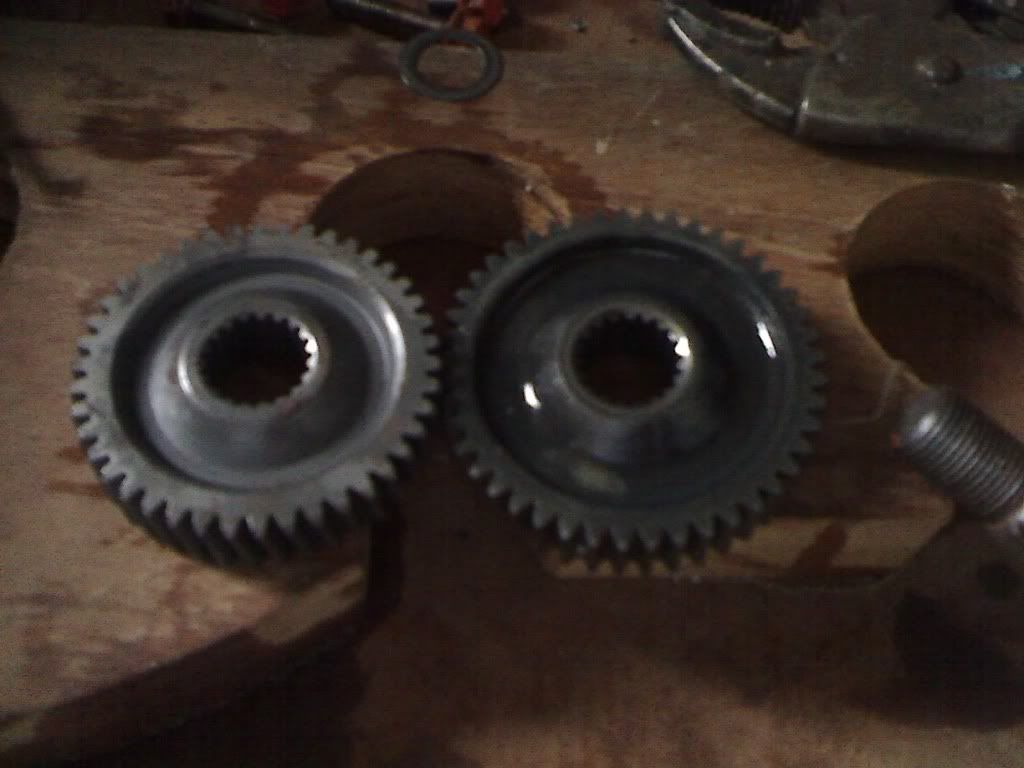

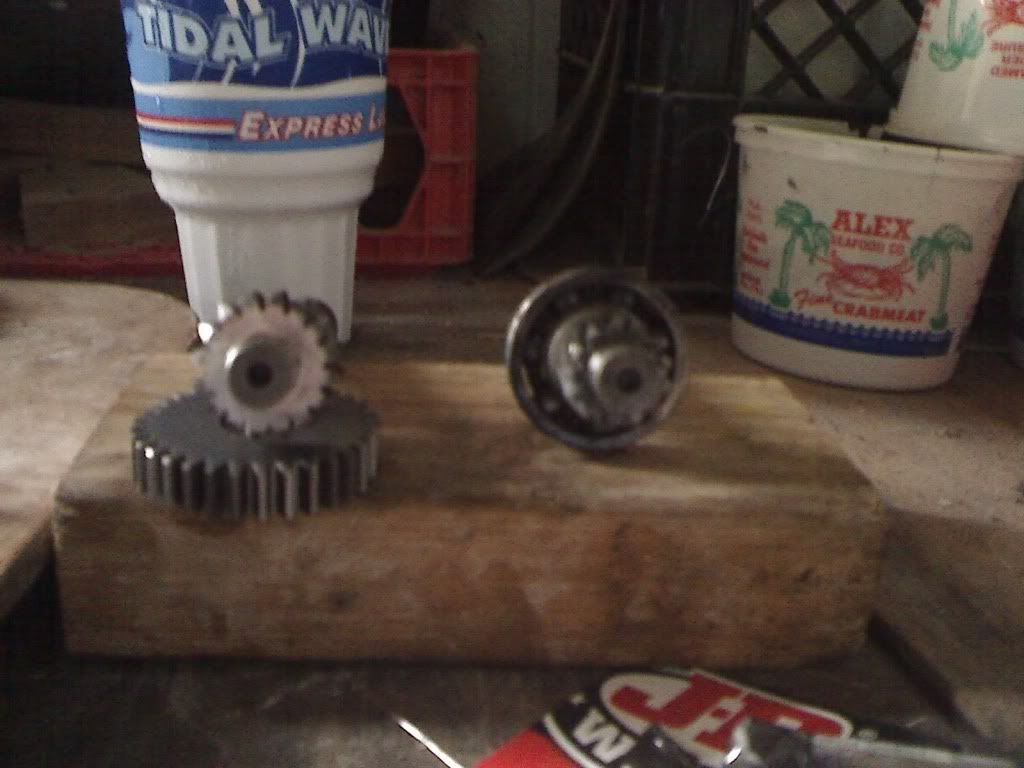

Next was the gears... I tried Malossi primaries, and with my unknown brand secondaries I had 7.1:1 final ratio, and was still running out of gear. Now I have a set of Polinni primaries, and a set of ZX custom cut secondaries from Steve at Moped Hospital. He informed me these have sat for years because they had no bike to push them. They were sold as is so no crying... The final ratio is 5.75:1. That should get some mph, as long as the rest is correct.
My method of gear change... Heat one, and the other drops out.
I also found the new secondary shaft was too big for the case boss. It had to be tapped into place. N/G. I chocked it in a drill press, and lapped it down using emory cloth, and final polishing with several different rubbing compounds. New seals/bearings/shims/thrust washers/buffer were installed, and it turns like silk by hand. I also had to take a piont file to every tooth on the large secondary gear. It did bind but now is fine.
Here's the most important tool I own. I would have to die, and never touch another engine without this very important piece of equipment...
The engine held 6psi overnight. I also teated w/ my pipe installed, and all is well in the 25 total welds on the Scorpion.
I have some more issues w/ the HPI CDI but will add them to the thread this thread came out of.
I appreciate all the help/advice/encouragement that you all provided to get this far. Just so you all know... I will get 90mph from this bike. Three runs to prove it, and it will be drained of fuel/fogged/bagged, and put up for sale. I want an SR 50. Just can't seem to spend hard earned dollars for it. I'd rather get it back out of the scoots first.
